Description
Available tank capacities are 2 000, 4 000, 6 000 and 8 000 litres.

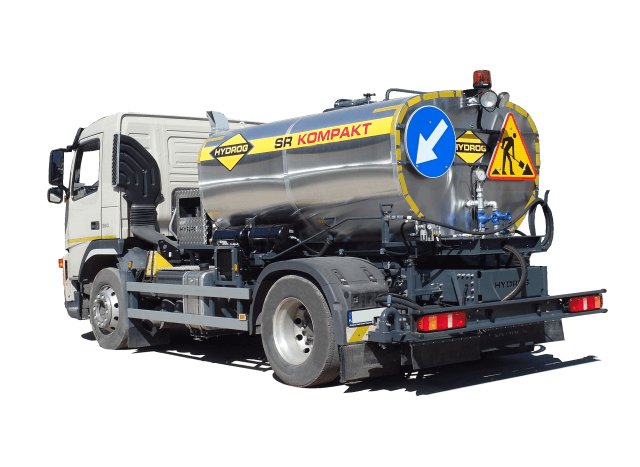

The sprayer can be mounted on a chassis frame, on a tipper, on a hooklift frame or on a trailer.
Technical data
Tank Capacity
2 000 l / 4 000 / 6 000 / 8 000 l (depending on type)
Ramp spraying width
4.5 m (2.5 m + 2 extensions, 1 m each)
Spraying efficiency
1 – 1.2 kg/m2 at a speed of 3-8 km/h, adjusted automatically from the driver’s cabin
Heating
Automatically controlled oil burner with optional external power supply AC 220 V 50 Hz
Combustion Engine
Diesel Yanmar 3TNM68-AS liquid cooled, power of 19.0 HP
Standard Equipment
Automatic emulsion dosing system
Air compressor lance for manual spraying
Emulsion temperature indicator
Emulsion pressure gauge
Additional Equipment
TV monitoring of the spraying ramp
Technical water tank with 140 l/min pump
Front brush – side sweeper
